Product Introduction

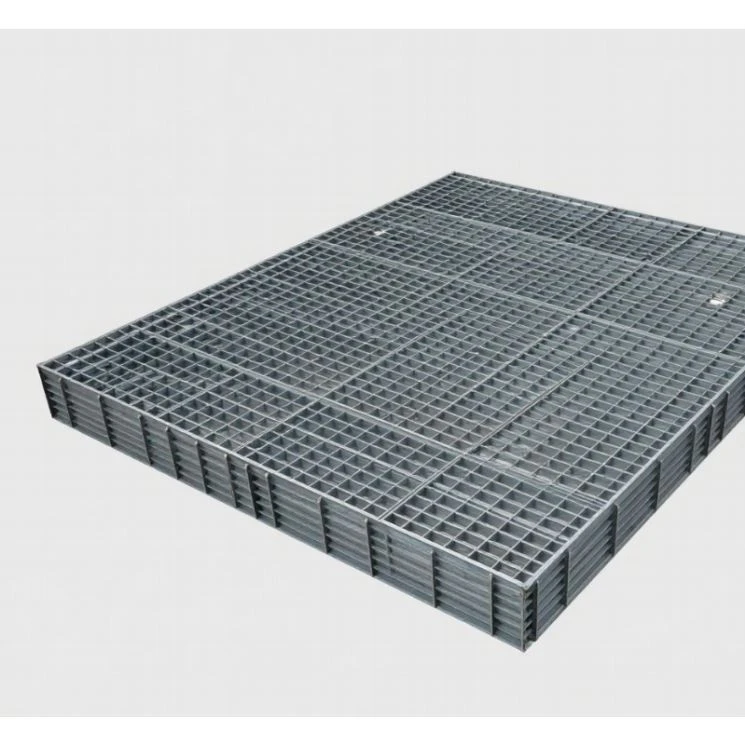

Skywind Composites High Strength FRP Equipment Platform Grating is engineered for industrial platforms, maintenance walkways, elevated access areas, and flooring systems requiring high structural performance, corrosion resistance, slip resistance, and low maintenance.
Manufactured from fiberglass-reinforced polymer (FRP) with continuous E-glass fiber reinforcement and a corrosion-resistant resin system, it provides a lightweight alternative to conventional steel grating with exceptional resistance to moisture, chemicals, saltwater, and harsh industrial environments.
Why Choose FRP Equipment Platform Grating?
High Structural Strength
Engineered to support personnel, tools, equipment, and operational loads. Thickness and structural configuration can be selected according to design load, support spacing, and allowable deflection requirements.
Superior Corrosion Resistance
FRP does not rust and provides excellent resistance to moisture, wastewater, chemicals, saltwater, acids, alkalis, and outdoor weathering, reducing maintenance requirements compared with carbon steel.
Lightweight, Slip-Resistant & Non-Conductive
The high strength-to-weight ratio makes FRP grating easier to transport, handle, cut, and install. Concave, molded anti-slip, or gritted surfaces are available for wet and oily environments, while the non-metallic structure provides electrical non-conductivity.
Low Maintenance & Long Service Life
FRP grating requires no rust removal or regular repainting and maintains reliable performance in demanding industrial environments, helping reduce long-term maintenance and replacement costs.
Specifications & Standards
|
Specification |
Available Options |
|
Material |
Fiberglass Reinforced Polymer (FRP) with continuous E-glass fiber |
|
Grating Type |
Molded / Pultruded (according to application requirements) |
|
Resin Systems |
Polyester / Isophthalic / Vinyl Ester / Specialized options |
|
Mesh & Thickness |
Standard industrial mesh (38 × 38 mm, 50 × 50 mm) and thicknesses (25 mm, 38 mm, 50 mm), or custom sizes |
|
Surface Finishes |
Concave, Gritted, Smooth, or Covered top |
|
Color & Compliance |
Standard/Custom industrial colors; manufactured to ASTM E84, ISO 9001, and EN standards |
Key Industry Applications
Chemical Processing Plants: Platforms, walkways, and access flooring around pumps, valves, storage tanks, and pipe networks where exposure to aggressive acids, alkalis, and chemical fumes is constant.
Wastewater Treatment Facilities: Elevated walkways, clarifier access areas, and filter platforms that suffer from high moisture and corrosive effluent exposure.
Power Plants & Electrical Facilities: Service walkways, cable access areas, and auxiliary platforms benefiting from non-conductive electrical isolation properties.
Oil, Gas & Offshore Facilities: Process access platforms, tank access areas, and marine service walkways requiring durable resistance to saltwater, high humidity, and weathering.
Global Experience & Project References
Southeast Asia Wastewater Treatment Facility
Over 2,500 m² of vinyl-ester molded FRP grating installed in corrosive chemical-dosing and clarifier walkways, showing zero degradation after years of exposure.
Middle East Offshore Desalination Plant
Isophthalic polyester pultruded gratings utilized for high-load maintenance platforms, withstanding high ambient temperatures and aggressive marine salt-spray conditions.
Resin Selection Guide
General-Purpose Polyester
Moderate industrial environments and standard factory flooring.
Isophthalic Polyester
Enhanced corrosion resistance for wastewater and chemical processing.
Vinyl Ester
Maximum resistance for aggressive chemical plants, acid handling, and offshore marine service.
FRP vs. Carbon Steel Grating
|
Performance Factor |
FRP Grating |
Carbon Steel Grating |
|
Corrosion & Rust |
Excellent; does not rust |
Prone to rust; requires coatings |
|
Weight |
Lightweight |
Heavy |
|
Electrical Conductivity |
Non-conductive |
Conductive |
|
Maintenance |
Low |
High in corrosive environments |
|
Handling |
Easy; low labor impact |
Labor-intensive |
Custom Fabrication & Export Logistics
Skywind supplies fully customized panels, cut-to-size dimensions, circular openings, pipe penetrations, notches, and stair treads.
Anti-Damage Packaging
Heavy-duty edge protectors, robust wooden pallets, and secure strapping prevent transit scratching and corner chipping.
Container Optimization
Engineered loading plans maximize volumetric efficiency to reduce ocean freight costs.
Comprehensive After-Sales Service
Dedicated technical assistance for installation guidelines, fixing accessory selection, and responsive global project support.
FAQ
Q: Can FRP grating be used for heavy equipment platforms?
A: Yes. However, selection must be based on the design load, support span, and allowable deflection criteria rather than thickness alone. Our engineering team can evaluate your platform drawings to recommend the correct configuration.
Q: Is FRP grating electrically conductive?
A: No. FRP is non-metallic and electrically non-conductive, offering safe insulation for electrical rooms, substations, and power utility environments.
Q: Can panels be cut to custom shapes or dimensions prior to shipment?
A: Yes. We provide complete pre-fabrication services, including custom panel sizing, circular cut-outs, notches, pipe penetrations, and stair treads to minimize on-site installation work.
