Product Introduction

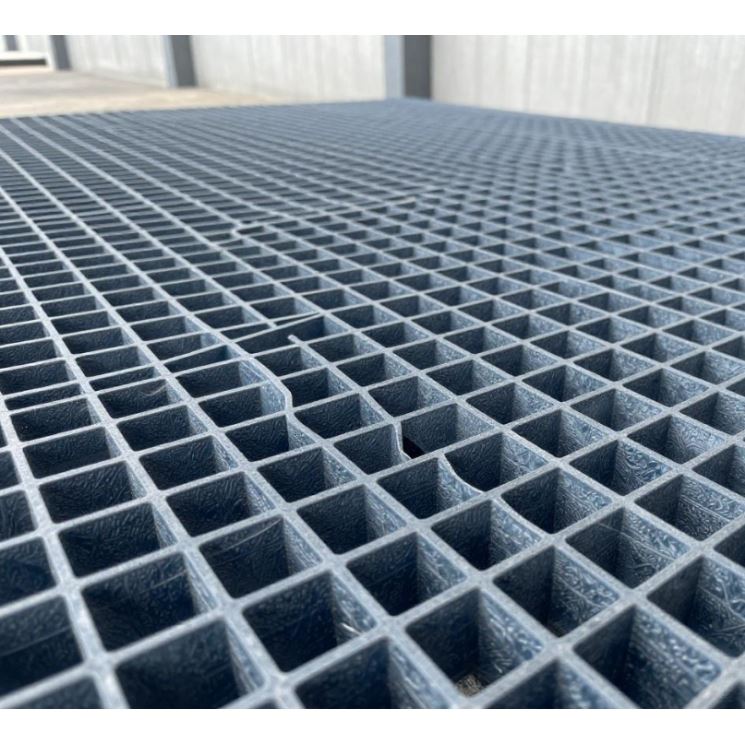

Skywind Composites manufactures Heavy Duty Molded FRP Grating for industrial, marine, and infrastructure projects requiring high load capacity, large spans, and corrosion resistance.
Produced by combining continuous fiberglass reinforcement with high-performance resin matrices, our grating forms an integrated, high-strength grid. It serves as a durable alternative to conventional steel grating for uniform loads, concentrated equipment traffic, and dynamic wheel loads.
Product Specifications
|
Parameter |
Specification Options |
|
Product Type |
Heavy Duty Molded FRP Grating |
|
Material |
Fiberglass Reinforced Plastic (FRP) |
|
Manufacturing Process |
Molded Construction (Integrated Load-Bearing & Cross Bars) |
|
Mesh Sizes |
19 × 19 mm, 20 × 20 mm, 25 × 25 mm (Heavy-Duty), 26 × 26 mm |
|
Resin Systems |
Isophthalic Polyester, Vinyl Ester, Phenolic |
|
Surface Options |
Standard Molded, Anti-Slip, Silicon Carbide Grit |
|
Panel Size & Customization |
Standard or custom dimensions, cut-to-size panels, machined openings, and edge banding |
|
Color |
Customized according to project requirements |
Technical Comparison
|
Property |
Heavy Duty Molded FRP Grating |
Traditional Steel Grating |
|
Corrosion Resistance |
Excellent (Resists saltwater, chemicals, moisture) |
Requires galvanizing or protective coatings |
|
Weight & Handling |
Lightweight; easy to cut and install on-site |
Heavy; requires welding and equipment |
|
Electrical Properties |
Non-Conductive (Ideal for electrical facilities) |
Conductive |
|
Maintenance |
Low long-term maintenance in harsh environments |
High in corrosive settings; prone to rust |
|
Slip Resistance |
Available with integrated grit surfaces |
Requires additional anti-slip treatment |
Product Advantages
Engineered specifically for heavy-duty requirements, including uniform loads, concentrated equipment traffic, and dynamic wheel or forklift loads.
Unaffected by moisture, saltwater, wastewater, and aggressive industrial chemicals, eliminating rust-related degradation.
Provides exceptional structural performance while remaining significantly lighter than metal alternatives, reducing handling and installation labor.
Offers inherent electrical insulation, making it ideal for substations, power plants, and electrical rooms.
Key Industry Applications
Forklift & Vehicle Areas: Engineered for wheel loads and traffic (requires span review).
Industrial Ramps & Platforms: Elevated access areas with anti-slip grit surfaces.
Trench & Drainage Covers: Removable, high-load covers for drainage channels.
Chemical & Wastewater Facilities: Resistant to aggressive chemical splashes and moisture.
Marine & Coastal Infrastructure: Unaffected by saltwater spray and humidity.
Power & Oil & Gas: Non-conductive structural material for onshore and offshore installations.
Resin System Options
Isophthalic Polyester: Standard industrial grade for general water, wastewater, and mild chemical exposure.
Vinyl Ester: High-performance resin for aggressive acids, alkalis, and severe chemical environments.
Phenolic: Low-smoke, fire-retardant resin for enclosed or offshore applications.
Quality Control Process
Incoming Inspection
Testing raw resins, rovings, and additives.
Process Inspection
Monitoring gel times, fiber wet-out, cure temperatures, and dimensions.
Finished Product Inspection
Verifying panel thickness, mesh squareness, and surface grit.
Final Audit
Checking packaging integrity and labeling prior to export.
FAQ
Q: What is Heavy Duty Molded FRP Grating?
A: It is a fiberglass-reinforced plastic grating manufactured through a molded process, engineered specifically for industrial applications requiring higher load performance than standard pedestrian walkways.
Q: Can Heavy Duty FRP Grating support forklift traffic?
A: Yes. It can be engineered for forklift and vehicle wheel loads, provided the support span, grating depth, and traffic conditions are evaluated through a project-specific review.
Q: How do I select the correct grating depth and mesh size?
A: Selection depends on your clear support span, load type (uniform, concentrated, or wheel load), and allowable deflection limits. Contact our engineering team for technical evaluation.
Q: Is FRP grating suitable for corrosive or outdoor environments?
A: Yes. With the correct resin system selected for your chemical and UV exposure, FRP grating resists rust, saltwater, and harsh industrial chemicals far better than traditional steel.
