Product Overview

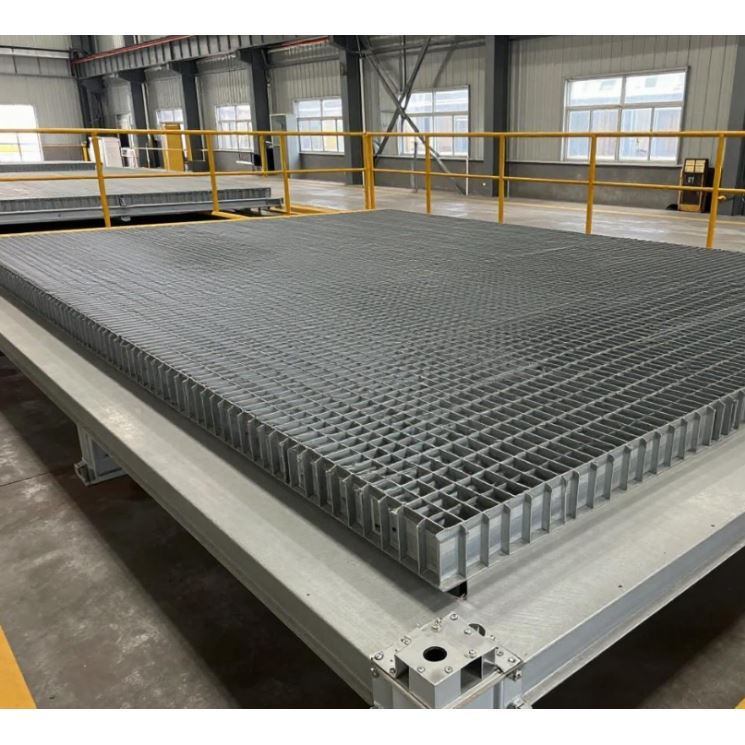

Skywind Composites supplies Heavy Load FRP (Fiberglass Reinforced Plastic) Platform Grating engineered for industrial flooring, walkways, mezzanines, and equipment platforms subject to extreme working loads and aggressive corrosive environments.
By combining continuous glass fiber reinforcement with specialized resin matrices, our heavy-load grating delivers high structural strength, reduced structural dead weight, and long-term corrosion resistance without the maintenance requirements of traditional steel grating.
Structural Selection: Molded vs. Pultruded
Choosing the correct manufacturing structure depends on load direction, span length, and cutout requirements:
Molded FRP Grating: Features an integrated bi-directional fiberglass matrix. Ideal for multi-directional pedestrian and light-equipment traffic, complex site cutouts, and environments requiring maximum multi-directional corrosion resistance.
Pultruded FRP Grating: Features high-density longitudinal load bars manufactured via pultrusion. Engineered for long support spans, unidirectional heavy equipment loads, maximum stiffness, and reduced deflection.
Technical Specifications & Customization Matrix
|
Parameter |
Specifications & Available Configurations |
|
Product Type |
Heavy Load FRP / GRP Platform Grating |
|
Manufacturing Process |
Molded (Bi-directional) or Pultruded (High longitudinal strength) |
|
Resin Systems |
Polyester: General industrial exposure; Isophthalic: Moderate chemical & industrial environments; Vinyl Ester: Severe acids, alkalis, wastewater & aggressive chemicals |
|
Panel Thickness |
25 mm, 30 mm, 38 mm, 50 mm, 60 mm+ (Engineered to span & load) |
|
Mesh Opening Sizes |
25 × 25 mm, 38 × 38 mm, 50 × 50 mm, or custom mesh layouts |
|
Surface Options |
Integrated concave anti-slip, standard gritted surface, heavy-duty high-traction grit |
|
Standards Compliance |
ISO 9001 certified production; ASTM E84 fire retardancy options |
|
Fabrication & Color |
Standard colors (Grey, Yellow, Green, Dark Grey) or RAL custom options; precision cut-to-size panels available |
Quality Assurance & Manufacturing Standards
High-grade continuous fiberglass rovings and premium thermosetting resins are selected to ensure optimal tensile strength and chemical resistance.
Produced under strict ISO 9001 certified quality management systems, monitoring resin-to-glass ratios, cure cycles, and dimensional tolerances.
Products undergo internal verification for load-bearing capacity, deflection limits, and slip resistance. Flame retardancy options are available to meet ASTM E84 standards.
We cooperate with independent inspection agencies (such as SGS, BV, or TÜV) to fulfill project-specific quality verification and testing requirements upon request.
Performance Comparison: Heavy Load FRP vs. Carbon Steel
|
Performance Metric |
Heavy Load FRP Grating |
Carbon Steel Grating |
|
Corrosion Resistance |
Inert to rust, water, salts, acids, and alkalis |
Requires frequent galvanizing/painting; highly prone to rust |
|
Structural Weight |
~25–30% the weight of steel; lowers transport & rigging costs |
Heavy; requires specialized lifting equipment |
|
Electrical Safety |
Electrically non-conductive; no grounding required |
Highly conductive |
|
Maintenance Need |
Zero routine anti-rust coating or repainting required |
Continuous maintenance costs in wet or chemical conditions |
|
Slip Safety |
Permanent integrated anti-slip surface options |
Smooth surfaces become slippery when wet or oily |
Industry Applications
Chemical & Petrochemical: Dosing platforms, tank access walkways, drainage trench covers, and washdown bays.
Water & Wastewater Treatment: Aeration platforms, clarifier walkways, pump access areas, and sludge treatment floors.
Power & Electrical Facilities: Substation maintenance platforms, transformer areas, battery rooms, and cable access trenches.
Marine & Offshore: Saltwater walkways, gangways, deck platforms, and splash-zone structural flooring.
Mining & Heavy Processing: Slurry handling areas, chemical recovery plants, and elevated conveyor walkways.
FAQ
Q: How do I determine the correct grating thickness and type for my project?
A: Thickness and type selection depend on your actual support span, uniform or concentrated load requirements, and allowable deflection limits. Providing your project drawings, layout plans, or operating load parameters allows our engineering team to calculate and recommend the precise configuration.
Q: Can heavy load FRP grating support forklift or vehicle traffic?
A: Specialized heavy-duty pultruded FRP grating can be engineered to handle specific wheel and vehicle loads. However, standard light-duty grating cannot support forklifts. Exact axle loads, wheel contact areas, and turning conditions must be evaluated prior to selection.
Q: Which resin system should I choose for chemical or marine environments?
A: Isophthalic Polyester is suitable for general industrial and moderately corrosive applications.
Vinyl Ester is specifically recommended for aggressive acidic, alkaline, wastewater, and saltwater environments due to its superior chemical resistance.
Q: Can FRP grating be custom-cut to fit complex platform layouts?
A: Yes. Panels can be pre-cut to specific project dimensions and shapes at our facility based on your layout drawings, minimizing cutting work during on-site installation.
