Product Overview

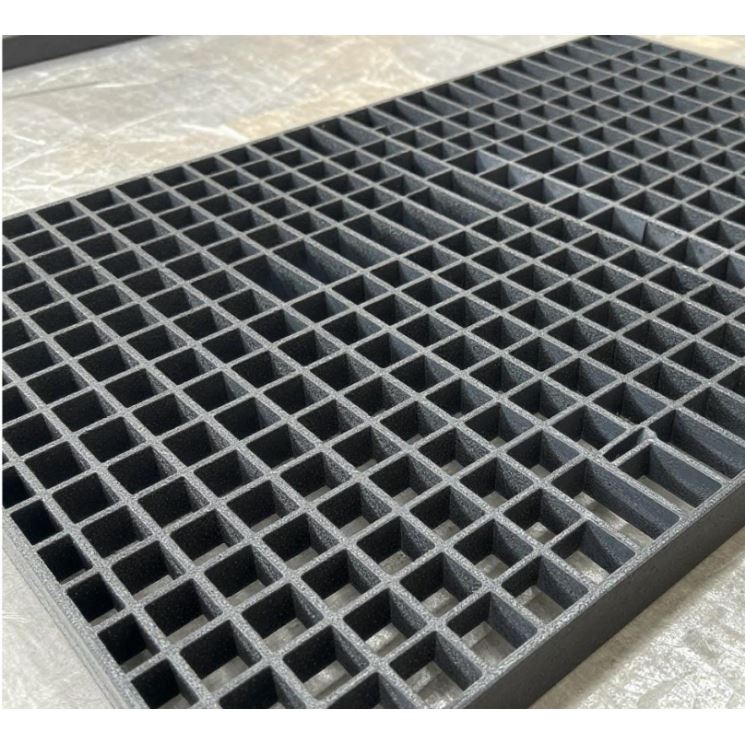

Skywind Composites manufactures gritted anti-slip FRP (Fiberglass Reinforced Polymer) grating for industrial flooring, access platforms, maintenance walkways, stair treads, and wet or corrosive operating areas.
Our gritted surface delivers high traction in contaminated environments, while the structural fiberglass polymer core provides corrosion resistance, electrical insulation, and low-maintenance performance. Grating is supplied in molded or pultruded construction across varied resin systems, mesh sizes, thicknesses, and custom dimensions.
Technical Specifications
|
Parameter |
Specification & Options |
|
Product Type |
Gritted Anti-Slip FRP / GRP Grating |
|
Material |
Fiberglass Reinforced Polymer |
|
Construction |
Molded / Pultruded |
|
Surface Finish |
Gritted Anti-Slip (bonded abrasive aggregate) |
|
Mesh Size |
Standard (38 × 38 mm, 25 × 100 mm) & Custom |
|
Panel Thickness |
25 mm, 30 mm, 38 mm, 50 mm (Project-specific) |
|
Panel Dimensions |
Standard stock sizes & Custom cut-to-size |
|
Resin System |
Polyester, Isophthalic Polyester, Vinyl Ester |
|
Colors |
Yellow, Dark Grey, Green, Light Grey, Custom RAL |
|
Accessories |
Cut-to-size panels, edge sealing, stair treads, fixing clips |
|
Compliance |
Manufactured under ISO 9001; Fire retardant to ASTM E84 Class 1 (≤ 25 Flame Spread); Slip resistance tested to DIN 51130 (R13). |
Why Choose Gritted FRP Grating?
High Traction: Maximum slip resistance in wet, oily, or chemical environments.
Corrosion Resistance: High resistance to aggressive chemicals, saltwater, and humidity.
Lightweight: Lower dead weight than steel for faster handling and installation.
Non-Conductive: Electrical insulation for substations and utility areas.
Open Drainage: Vertical drainage for liquids and debris.
Low Maintenance: Eliminates regular painting and abrasive blasting.
Applications

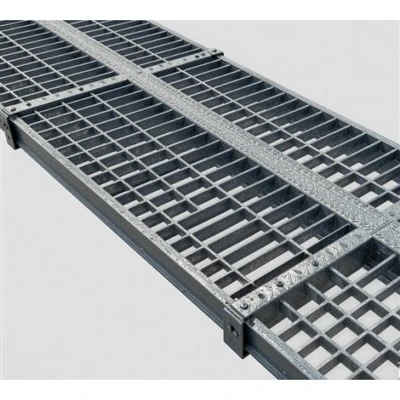

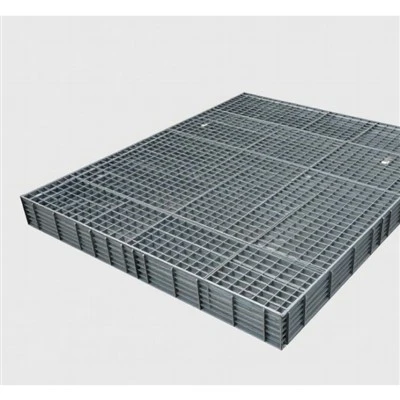

Industrial Platforms
Operating decks and maintenance access areas.
01
Wastewater Treatment
Walkways and channel covers exposed to moisture and treatment chemicals.
02
Chemical Processing
Flooring systems resistant to acid and solvent spills.
03
Marine & Offshore
Saltwater-resistant, non-sparking walkways for docks and vessels.
04
Stairs & Ramps
High-visibility anti-slip stair treads with contrasting nosings.
05
Manufacturing & Quality Control
Facility Scale: 25,000 m² production facility with automated molding and pultrusion lines.
Capacity: Annual output exceeding 1.2 million m².
Quality Verification: Multi-point batch inspection covering dimensional tolerances, mesh squareness, fiber-to-resin ratio, grit adhesion peel strength, and visual defect screening. Third-party inspection (SGS, Bureau Veritas) and certified material test reports are available upon request.
Installation Guidelines
FRP grating is lightweight and easy to fabricate on-site using standard composite tools.
Preparation
Verify support spans, clear openings, and panel dimensions against layout drawings.
Cutting
Use carbide-tipped or diamond-coated blades for clean cuts; seal all exposed cut edges with compatible resin to maintain corrosion resistance.
Fixing
Position panels securely on supports using dedicated FRP or grade 304/316 stainless steel saddle clips and fasteners to prevent panel movement under load.
Export Packaging & Delivery
Pallets: ISPM 15 fumigation-free heat-treated wooden pallets.
Protection: Corrugated interleaving and edge protectors to prevent surface scuffing during transit.
Securing: Heavy-duty tensioned bands and moisture-resistant wrapping film.
Frequently Asked Questions
Q: What is gritted anti-slip FRP grating?
A: It is a fiberglass reinforced polymer grating featuring a permanently bonded abrasive grit surface that provides superior traction in wet, oily, or hazardous industrial environments.
Q: Can Skywind supply custom-sized or cut-to-size panels?
A: Yes. We offer full custom fabrication services, including cut-to-size panels, custom shapes, pipe cut-outs, and edge sealing based on your project drawings or BOQ.
Q: How do I select the correct grating thickness and resin system?
A: Thickness is determined by your clear span, support spacing, and loading requirements. Resin selection depends on chemical exposure and operating temperatures. Share your site conditions, and our engineers will recommend the exact specification.
Q: Are third-party inspection and test reports available?
A: Yes. We can provide certified material test reports and arrange third-party inspection (such as SGS or Bureau Veritas) prior to shipment upon request.
