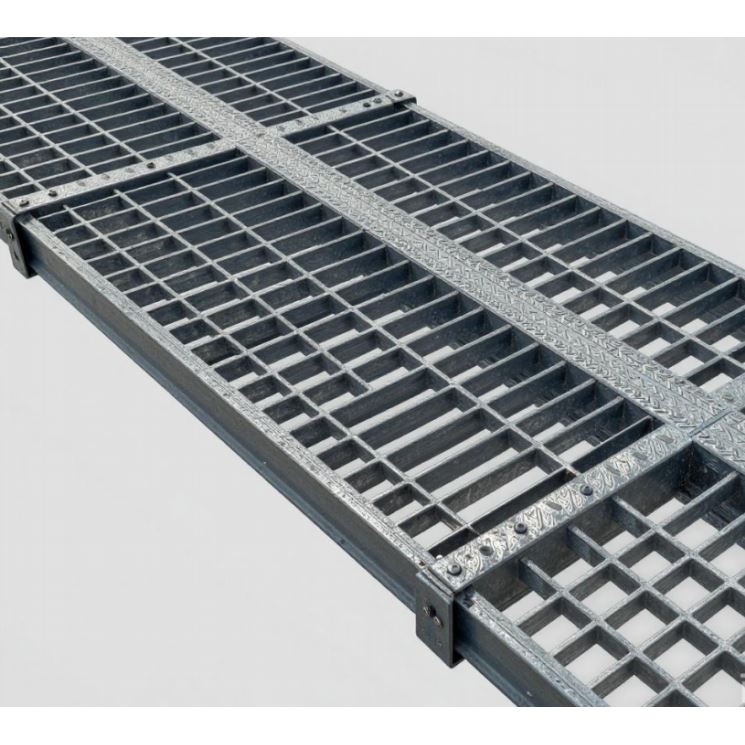

Product Overview
Skywind Composites manufactures high-performance fiberglass reinforced polymer (FRP/GRP) grating engineered for industrial operating platforms, equipment access areas, maintenance walkways, and harsh chemical or marine environments. Designed to meet international industrial standards (ISO 9001, ASTM E84, ISO 14125), our grating combines structural strength with lightweight, non-conductive, corrosion-resistant construction.
Technical Specifications
|
Parameter |
Standard Options & Compliance |
|
Product Type |
FRP / GRP Grating (Molded or Pultruded) |
|
Resin Systems |
Isophthalic Polyester / Vinyl Ester / Fire-Retardant |
|
Surface Options |
Gritted / Concave / Meniscus / Covered Top |
|
Thickness Options |
25 mm, 30 mm, 38 mm, 50 mm (Custom sizes available) |
|
Panel Dimensions |
Standard (e.g., 1220 × 3660 mm) or Custom Cut-to-Size |
|
Certificates |
ISO 9001, ASTM E84 Class 1, ABS Marine type-approved |
|
Fabrication |
Precision Cutting, Drilling, Notching, Edge Sealing, Cutouts |
Core Advantages
Corrosion Resistance
Unlike carbon steel, FRP does not rust. Selecting the correct resin (Polyester or Vinyl Ester) ensures long-term performance in acidic, alkaline, and saline environments. (Request our FRP Chemical Resistance Guide).
Certified Anti-Slip Surfaces
Available in gritted, concave meniscus, or solid covered top finishes to provide secure traction under wet, oily, or greasy conditions while containing spills.
High Strength-to-Weight Ratio & Safety
Continuous fiberglass reinforcement provides high load capacity at a fraction of steel's weight, significantly reducing freight and handling costs while offering non-conductive and non-sparking properties for electrical safety.
Low Maintenance & Extended Service Life
Eliminates sandblasting, priming, and frequent repainting, lowering total lifecycle costs across demanding industrial applications.
Product Applications
Skywind Composites FRP grating is engineered to provide reliable, safe, and long-lasting performance across a wide range of demanding industrial environments:
Equipment Access Platforms & Walkways: Providing safe, slip-resistant elevated access for operators and maintenance personnel around heavy machinery.
Trench Covers & Drainage Pits: Withstanding heavy washdowns, chemical runoff, and frequent vehicular or pedestrian traffic while maintaining efficient self-draining capabilities.
Stair Treads & Landings: Delivering high-traction, corrosion-resistant steps for vertical circulation in wet or outdoor facilities.
Tank & Vessel Access Areas: Resisting aggressive fumes, chemical splashes, and moisture surrounding chemical storage and processing tanks.
Quality Control & Manufacturing Standards
Skywind Composites maintains rigorous quality assurance protocols to ensure structural integrity and compliance with international industrial benchmarks:
Raw Material Inspection: Verification of continuous fiberglass roving and premium thermosetting resin batches.
Process Control: Monitored temperature and pressure during molding or pultrusion to eliminate internal voids and ensure uniform resin distribution.
Surface & Dimensional Verification: Precision checks on thickness, mesh tolerances, squareness, and anti-slip grit distribution.
Traceability & Documentation: Material test reports, ISO 9001 quality compliance documentation, and inspection certificates are available upon request for project orders.
Molded vs. Pultruded FRP Grating
|
Feature |
Molded FRP Grating |
Pultruded FRP Grating |
|
Load Distribution |
Multi-directional load sharing |
Unidirectional along bearing bars |
|
Structural Profile |
Integrated molded grid matrix |
Pultruded structural T-bars or I-bars |
|
Best Suited For |
General platforms and complex shapes |
High load capacity and longer support spans |
7-Step Selection Guide
Application: Operating platform, walkway, trench cover, or stair tread?
Load: Personnel traffic, concentrated equipment load, or dynamic impact?
Support Span: Clear distance between structural supports.
Environment: Chemical media, concentration, temperature, moisture, and UV exposure.
Surface: Gritted, Meniscus, or Covered.
Resin: Standard Polyester vs. high-performance Vinyl Ester.
Fabrication: Send CAD drawings or layout sketches for custom cutouts and edge sealing.
Frequently Asked Questions
Q: Is FRP grating suitable for highly corrosive chemical environments?
A: Yes. When paired with the correct resin system (such as Vinyl Ester for aggressive acids and bleaches), FRP outperforms traditional carbon steel in corrosive settings. Always consult our chemical resistance guide or provide your specific operating media.
Q: Can FRP grating panels be cut to size on-site?
A: Yes. Panels can be cut using standard diamond-blade saws. However, we recommend factory pre-fabrication (cutting, notching, and edge sealing) to ensure all exposed glass fibers are properly sealed with resin.
Q: How do I determine the correct thickness and mesh size?
A: Selection depends on your clear support span, expected uniform or concentrated loads, and allowable deflection limits. Send your project parameters to our engineering team for a professional load recommendation.
Q: Is FRP grating electrically conductive?
A: No. FRP is inherently non-conductive and non-sparking, making it an ideal flooring choice for electrical substations, power plants, and transformer yards.
