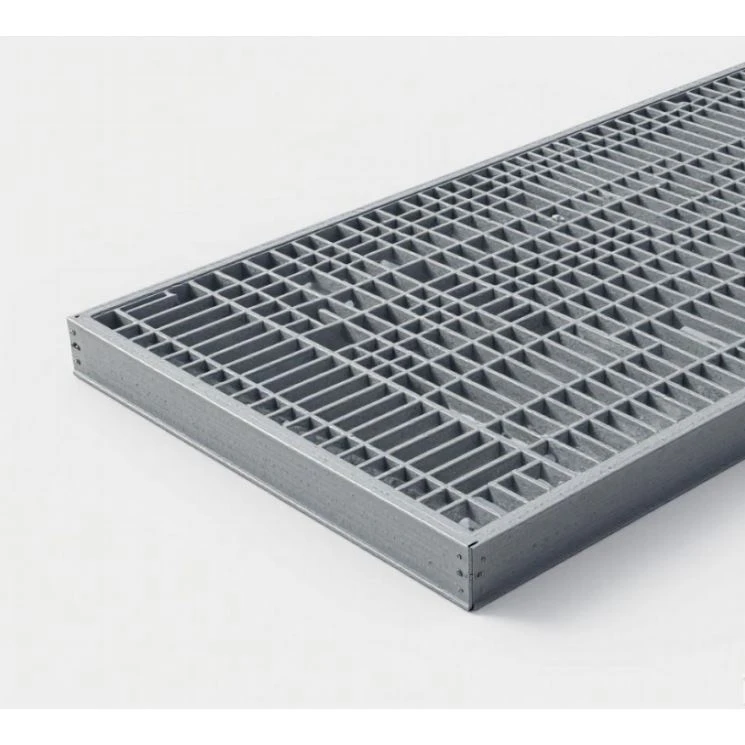

Product Overview
Skywind Composites manufactures premium anti-slip FRP platform grating for industrial walkways, operating floors, access platforms, stair treads, and corrosive environments worldwide. Combining fiberglass reinforcement with a thermosetting resin matrix, our non-metallic grating provides a high-strength alternative to conventional steel in wet, chemical, and electrical environments.
Why Choose Skywind FRP Grating?
Corrosion Resistance: Withstands harsh chemical exposures and high-moisture environments without rusting.
Anti-Slip Traction: Features a gritted surface profile to ensure secure footing in wet, oily, or dusty conditions.
High Strength-to-Weight: Lightweight construction reduces installation time and structural load compared to steel.
Electrically Non-Conductive: Non-metallic composition eliminates electrical hazards in sensitive areas.
Open Mesh Design: Allows efficient drainage of liquids and debris while providing ventilation.
Low Maintenance: Eliminates the need for recurring painting, sandblasting, or rust-inhibiting coatings.
Technical Specifications
|
Specification |
Standard Details |
|
Material / Reinforcement |
Fiberglass Reinforced Polymer (FRP) with Continuous E-Glass |
|
Resin Systems |
Isophthalic Polyester / Vinyl Ester / Orthophthalic Polyester |
|
Manufacturing Process |
Molded (Monolithic Bidirectional) / Pultruded |
|
Surface Profile |
Gritted Anti-Slip (Quartz / Aluminum Oxide) |
|
Standard Mesh Size |
38 × 38 mm (Square) / 25 × 100 mm (Rectangular) |
|
Standard Thickness |
25 mm, 30 mm, 38 mm, 50 mm |
|
Standard Panel Size |
1220 × 3660 mm (4' × 12'), 1000 × 3000 mm |
|
Bearing Bar Size |
38 × 6 mm, 30 × 5 mm (Customizable) |
|
Standard Colors |
Yellow, Green, Dark Grey, Light Grey |
|
Open Area |
Approx. 68% to 70% |
|
Quality & Standards |
Manufactured under ISO 9001; ASTM and EN compliant upon request |

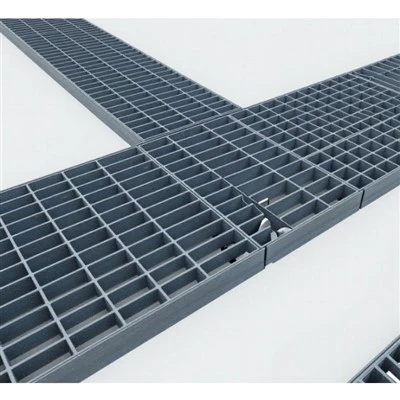

High-Traction Surface Applications
The gritted walking surface is engineered for areas exposed to process liquids, water, and contaminants.
Wastewater Treatment:
Access platforms, walkways, and tank covers.
01
Chemical Processing
Corrosive operating floors and maintenance pathways.
02
Marine & Offshore:
Saltwater-resistant decks, piers, and walkways.
03
Power & Cooling Towers:
Non-conductive platforms in high-humidity zones.
04
Industrial Manufacturing:
Machinery access flooring and trench covers.
05
Material & Structural Configuration
FRP grating is produced as a monolithic, bidirectional structural panel through molded or pultruded manufacturing processes. Resin systems are tailored to project exposure:
Isophthalic Polyester: Ideal for general industrial, marine, and wastewater applications.
Vinyl Ester: Formulated for aggressive chemical environments with high acid and alkali resistance.
Orthophthalic Polyester: Cost-effective option for general-purpose environments.
Custom Fabrication Services
Skywind provides complete in-house fabrication to minimize site labor:
Cut-to-Size Panels:
Precision trimming to fit floor layouts.
Openings & Penetrations:
Circular, square, or rectangular cut-outs for pipes and equipment.
Edge Sealing:
Resin sealing on all cuts to protect exposed glass fibers.
Stair Treads & Trench Covers:
Custom-fabricated with high-visibility nosings and load-bearing capacities.
Installation, Fastening, and Quality Control
Fastening: Panels anchor securely using 316 stainless steel hold-down clips (M-clips, J-clips, C-clips) compatible with steel or concrete supports.
Quality Assurance: Inspections cover raw material tension, resin viscosity, dimensional accuracy, surface grit adhesion, and visual defects. Third-party inspection reports (SGS, BV) are available upon request.
Export Packaging and Logistics
Packaging
Stacked panels with protective corner guards, moisture-resistant wrapping, and heavy-duty wooden pallets optimized for container shipping.
Documentation
Commercial Invoices, Packing Lists, Certificates of Origin, and Mill Test Reports (MTR).
Frequently Asked Questions
Q: What is the typical lead time and MOQ?
A: Standard panel production takes 7 to 15 days depending on volume and resin type. We support both bulk project orders and trial shipments.
Q: How do I select the correct grating thickness?
A: Provide your support span, expected load, and deflection criteria, and our technical team will calculate the required thickness.
Q: Can FRP grating be custom cut before shipment?
A: Yes. Send your CAD files, drawings, or Bill of Quantities (BOQ), and we will deliver ready-to-install panels with required cut-outs and edge sealing.
