Product Overview

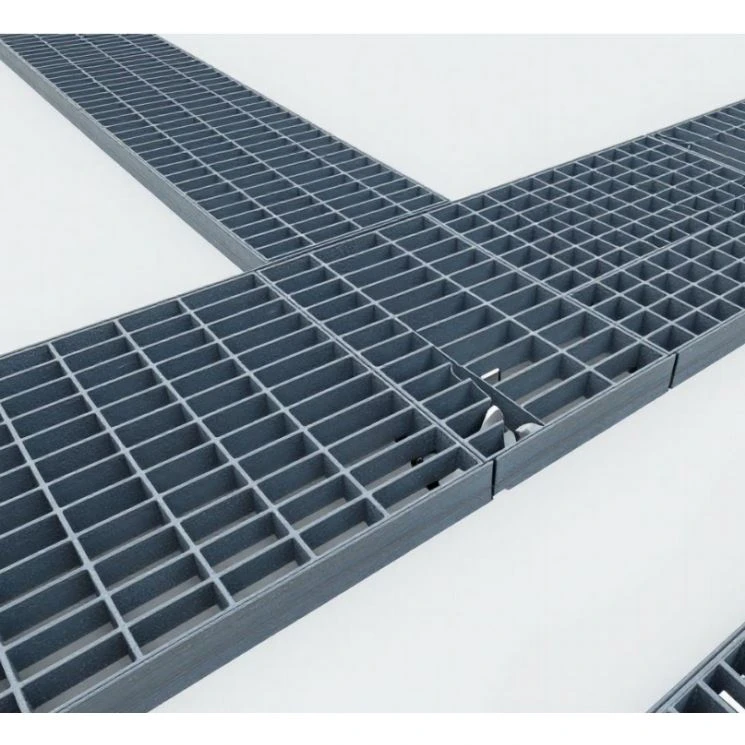

Skywind Composites manufactures certified, high-performance anti-slip FRP walkway grating for industrial applications. Engineered from premium fiberglass reinforcement and thermosetting resin systems, our grating combines exceptional corrosion resistance, high strength-to-weight ratio, electrical non-conductivity, and a certified slip-resistant walking surface.
Designed for harsh environments where moisture, oil, grease, aggressive chemicals, or saltwater make conventional metal flooring hazardous, our products meet rigorous international standards including ISO 9001 and ASTM testing benchmarks.
Specifications
|
Parameter |
Options |
|
Product Type |
Anti-Slip FRP Walkway Grating |
|
Material |
Fiberglass Reinforced Polymer (FRP) |
|
Reinforcement |
Continuous Fiberglass Rovings and Mats |
|
Resin Systems |
Polyester, Isophthalic Polyester, or Vinyl Ester |
|
Manufacturing Process |
Molded / Pultruded |
|
Surface Finishes |
Gritted Anti-Slip / Concave / Custom Profiles |
|
Mesh Openings |
Standard and custom grid patterns |
|
Panel Thickness |
Engineered options to match span and load requirements |
|
Panel Dimensions |
Standard stock sizes and custom cut-to-size dimensions |
|
Compliance |
ISO 9001 quality systems; test reports available upon request |
Key Product Advantages

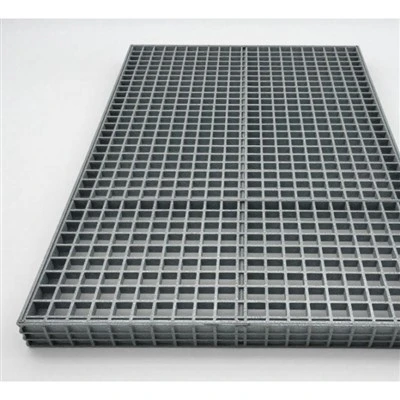

Certified Slip-Resistant Surface

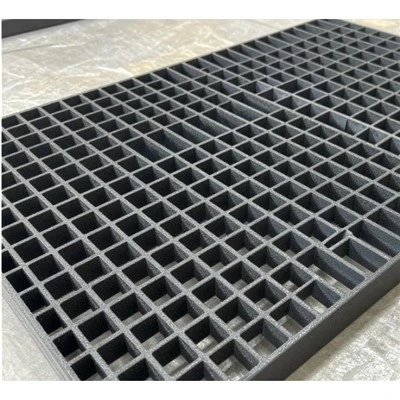

A gritted abrasive top layer provides superior traction in environments exposed to moisture, oil, and grease.
Superior Corrosion Resistance
Unlike carbon steel, FRP does not rust and delivers long-term durability in wet, chemical, and marine environments without surface coatings.
Lightweight Construction
Significantly lighter than traditional metal flooring, making it easier to handle, cut on-site, and install.
Electrically Non-Conductive
Ideal for power plants and specialized facilities requiring electrical insulation.
Proven Industrial Applications
Water & Wastewater Treatment: Walkways over aeration tanks, chemical channels, and clarifiers.
Chemical Processing: Corrosion-resistant platforms around reactors, storage tanks, and piping networks.
Oil, Gas & Marine: Offshore platforms, coastal facilities, and vessel decks resistant to saltwater.
Power Generation: Non-conductive platforms around turbine halls, transformers, and switchyards.
Technical Specifications
|
Parameter |
Specification Details |
|
Product Type |
Solid Top Molded FRP Grating |
|
Manufacturing Process |
Molded fiberglass-reinforced plastic (FRP) with continuous solid top |
|
Resin Systems |
Polyester, Isophthalic, Vinyl Ester (Selected based on chemical and environment requirements) |
|
Surface Options |
Molded Anti-Slip, Bonded Grit Surface, or Smooth Finish |
|
Reinforcement |
Continuous fiberglass reinforcement |
|
Electrical Properties |
Non-conductive FRP |
|
Fastening Systems |
FRP or stainless steel clip and fastener systems |
|
Quality & Compliance |
Manufactured under ISO 9001 quality management; meets applicable ASTM structural and fire-retardant standards |
Engineering Selection: Molded vs. Pultruded FRP
Molded FRP Grating
Produced as an integrated, one-piece monolithic composite panel with bidirectional fiberglass reinforcement distributed evenly throughout the structure.
• Best For: General industrial walkways, access platforms, wastewater facilities, chemical plants, and areas requiring bidirectional strength.
Pultruded FRP Grating
Constructed using high-strength structural bearing bars formed via the pultrusion process and assembled into a grid.
• Best For: Applications demanding higher directional strength, heavy wheel loads, or longer support spans.
Resin System Selection Guide
Selecting the correct resin system ensures long-term chemical and environmental resistance:
Polyester Resin: Cost-effective solution for general industrial applications with mild chemical exposure.
Isophthalic Polyester Resin: Enhanced corrosion resistance for industrial and marine environments.
Vinyl Ester Resin: Premium performance resin engineered for severe chemical processing plants, aggressive acids, and highly corrosive operating environments.
Custom Fabrication & Quality Control
Custom Fabrication Services
• Cut-to-Size Profiling: Panels are precision-cut to match precise project dimensions and installation layouts prior to delivery.
• Equipment Cut-Outs: Pre-cut circular or rectangular openings are integrated to accommodate pipes, valves, and structural penetrations.
• Stair Treads and Nosings: Custom-fabricated stair treads with high-traction nosings are supplied for safe vertical access.
• Specialized Formulations: Custom resin configurations, color options, and surface grits are applied to meet unique aesthetic or environmental standards.
Quality Assurance Standards
• Raw Material Verification: All fiberglass reinforcement and thermosetting resin batches undergo rigorous incoming inspection.
• Structural Inspection: Finished panels are meticulously checked for dimensional accuracy, thickness uniformity, and grid alignment.
• Cure Consistency Monitoring: Advanced thermal and chemical monitoring ensures complete resin cross-linking and structural integrity.
• Documentation and Testing: Mill test reports, ISO 9001 compliance certificates, and third-party inspection data are provided upon request.
Frequently Asked Questions
Q: What information should I provide for an accurate quotation?
A: Provide required walkway dimensions or drawings, expected uniform and concentrated loads, support span spacing, mesh opening preferences, and environmental/chemical exposure details.
Q: Can FRP walkway grating be cut on-site?
A: Yes. FRP grating can be cut using standard tools with carbide or diamond-tipped blades. Proper PPE and edge-sealing kits should be utilized during on-site fabrication.
Q: Do you provide test reports and third-party inspection?
A: Yes. We accommodate specific quality documentation, load test data, and third-party inspection requirements upon request prior to production.
