Product Overview

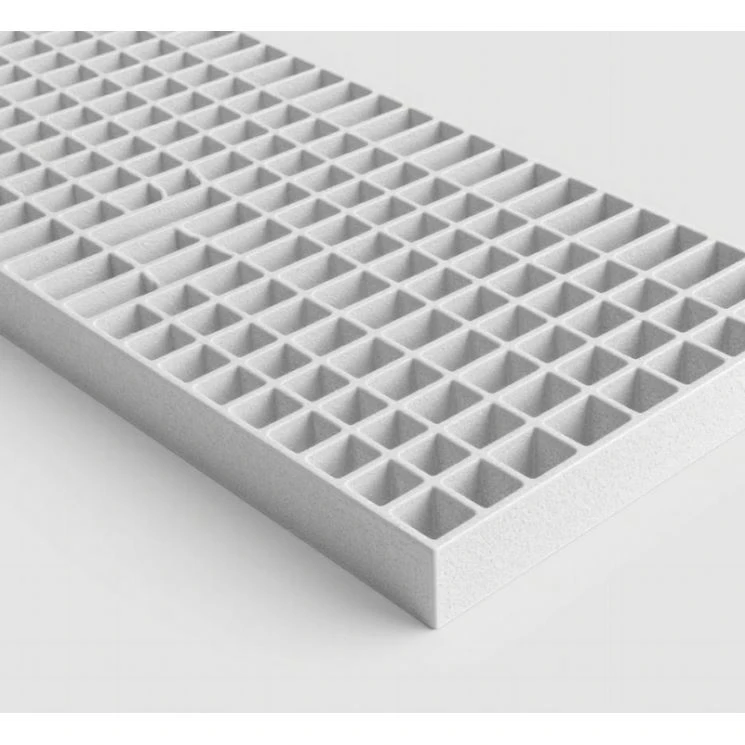

Skywind Composites Molded FRP Platform Grating is an engineered fiberglass reinforced polymer system designed for industrial platforms, walkways, maintenance areas, and access flooring. Manufactured under ISO 9001 standards by combining continuous fiberglass reinforcement with a thermosetting resin matrix, it forms a bi-directional, integrated composite panel offering a high-strength, non-metallic alternative to traditional steel grating in corrosive, wet, or demanding operating environments.
Why Choose Molded FRP Platform Grating?
Superior Corrosion Resistance
Unlike carbon steel, FRP does not rust. Selected resin systems withstand chemical exposure, moisture, wastewater, saltwater, and outdoor weathering.
Bi-Directional Strength
Continuous fiberglass reinforcement distributes loads evenly in two directions, ensuring structural stability for general industrial platforms and walkways.
Enhanced Safety
Integrated concave/meniscus or applied abrasive gritted surfaces provide dependable traction in wet or oily conditions.
Lightweight Efficiency
Significantly lighter than steel, reducing dead load on elevated structures and simplifying handling, transport, cutting, and installation.
Technical Specifications & Construction
Molded FRP grating is produced by impregnating continuous fiberglass strands with a thermosetting resin inside a heated mold, binding load bars and cross bars into a solid, monolithic panel.
Specification Matrix
|
Feature |
Standard Options |
|
Material / Reinforcement |
Fiberglass Reinforced Polymer (FRP) with Continuous Fiberglass |
|
Resin Systems |
Orthophthalic Polyester, Isophthalic Polyester, Vinyl Ester, Phenolic |
|
Mesh Sizes |
Square (e.g., 38x38mm) and Rectangular / Mini Mesh configurations |
|
Thickness Options |
25mm, 30mm, 38mm, 50mm (Project-specific sizing available) |
|
Surface Finishes |
Concave (Meniscus), Gritted, or Solid-Top (Covered) |
|
Panel Dimensions |
Standard (e.g., 1220x3660mm) and custom cut-to-size panels |
|
Colors |
Yellow, Green, Dark Gray, Light Gray, and custom pigmentation |
|
Standards & Compliance |
Manufactured under ISO 9001; complies with project-specific engineering codes (e.g., ASTM F3059 marine standards where applicable) |
Resin Selection Guide
Selecting the correct resin is vital for chemical and environmental durability.
Orthophthalic Polyester: Economical choice for general industrial and outdoor applications.
Isophthalic Polyester: Enhanced resistance for wet and moderately corrosive environments.
Vinyl Ester: Maximum corrosion resistance for aggressive chemical processing and acidic exposure.
Phenolic / Fire-Retardant: Engineered for strict fire performance and low smoke emission.
Mesh Patterns & Surface Options
Mesh Configuration
• Standard Mesh: Optimized for general foot traffic, ventilation, and drainage.
• Mini / Small Mesh: Prevents small tool drop-through and enhances pedestrian safety.
• Solid-Top (Covered): Provides a continuous surface for odor control, fluid containment, or wheeled traffic.
Anti-Slip Surfaces
• Concave Surface: Molded-in meniscus texture providing slip resistance without added grit.
• Gritted Surface: Applied quartz or mineral abrasive top layer for severe wet, oily, or icy conditions.
Industrial Applications
Chemical Processing: Plant walkways, operating platforms, tank access structures, and drainage trenches.
Wastewater Treatment: Clarifier walkways, pump stations, and corrosive drainage areas.
Power & Utilities: Substation service platforms, cable trench covers, and maintenance access.
Marine & Offshore: Decking, walkways, and salt-spray-exposed access structures.
General Manufacturing: Machine access platforms and factory flooring.
Custom Fabrication & Quality Assurance
Custom Fabrication Services
• Precision Cutting: Factory-cut panels, custom dimensions, and complex shapes tailored to project drawings.
• Openings & Penetrations: Pre-engineered cut-outs for pipes, equipment, columns, and structural obstacles.
• Edge Banding & Sealing: Resin sealing or edge closing for cut panels to maintain environmental and chemical resistance.
• Special Profiling: Notches and custom configurations built to match existing replacement layouts.
Quality Assurance & Control
• Raw Material Inspection: Rigorous verification of incoming continuous fiberglass and thermosetting resin formulations.
• Process Monitoring: Strict control over temperature, pressure, and timing during the molding cycle.
• Dimensional & Surface Checks: Precise inspection of panel thickness, mesh alignment, and anti-slip texture consistency.
• Documentation & Traceability: Delivery of certified technical datasheets, inspection records, and third-party test reports upon request.
Frequently Asked Questions
Q: How do I choose the correct grating thickness?
A: Thickness is determined by your support span, design load, and allowable deflection. Provide your project parameters for engineering sizing.
Q: Can FRP grating be cut on site?
A: Yes, using standard diamond-grit masonry or carbide cutting tools. Factory pre-cutting is also available.
Q: Is FRP grating slippery when wet?
A: No. Concave or gritted surface options provide high slip resistance even in wet or oily conditions.
Q: What information is needed for a quote?
A: Provide panel dimensions, quantity, mesh size, thickness, support span, design load, resin preference, and delivery destination.
